DRAFTING SERVICES.
TYL Façade Group offers drafting services to building façade subcontractors. We can prepare a total drafting package or a portion of a client’s total drafting package. Our depth of understanding of the essential presentation of drawing information, accuracy & speed and elements of the design enhances the quality of the drafting package submitted to the end user.
- Submission of shop drawings.
- Extrusion Die drawings.
- Fabrication drawings.
- VMU drawings and performance mock-up drawing
- Stick curtain wall
- Semi unitized curtain wall
- Windows and window wall systems
- Glass Balustrade
- Shopfront / Storefront
- Sloped glazing
- Skylights and roof systems
- Metal cladding systems (Aluminum and stainless steel)
- Point supported and structural glass walls
- Handset granite systems
- Unitized granite systems

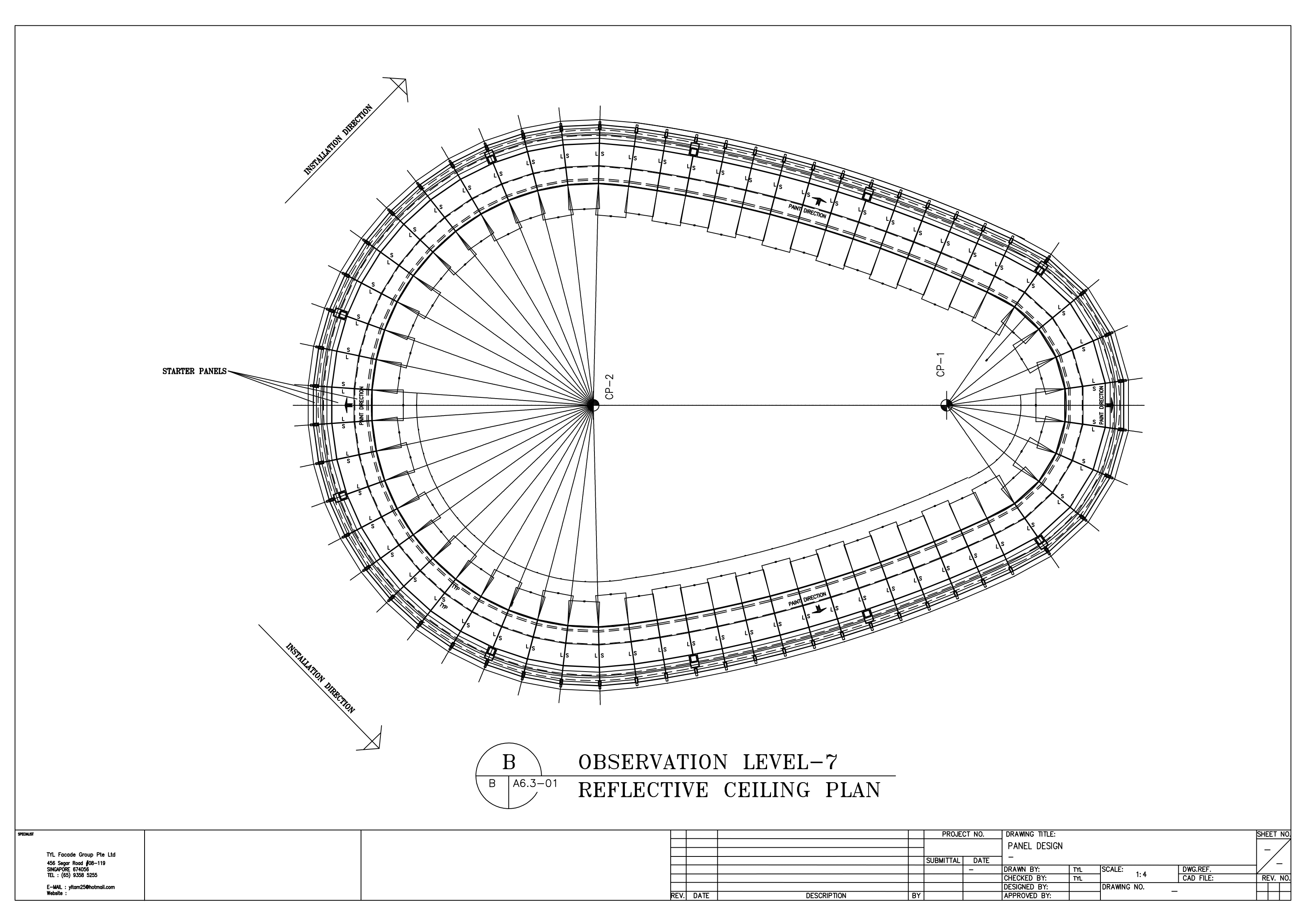

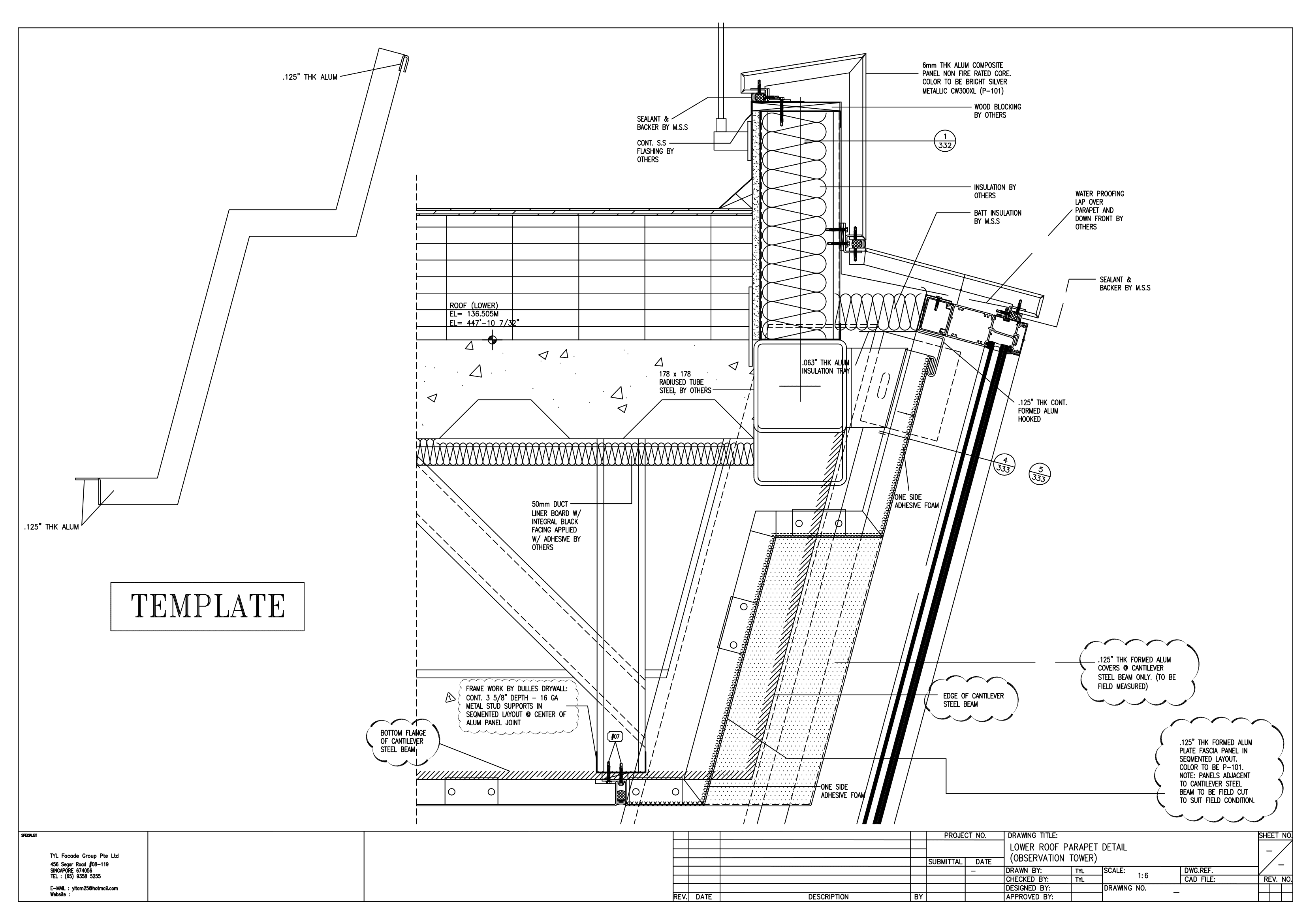

OUR WORKS.
